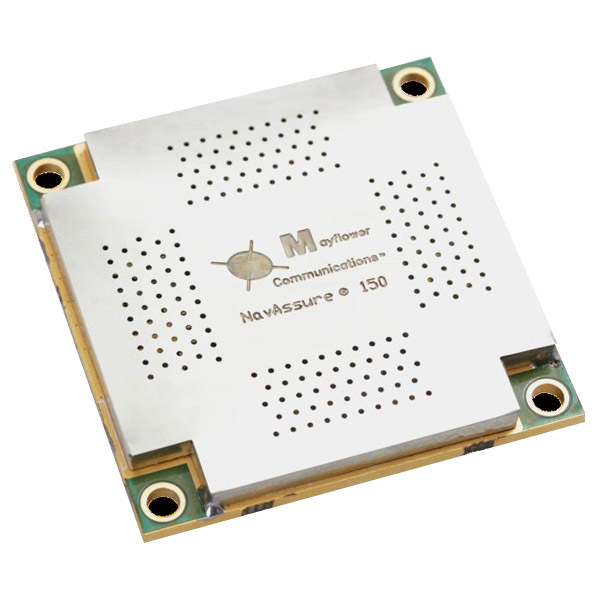

NavAssure® 150 SAASM P(Y) Code GPS Receiver
Ultra-compact dual frequency SAASM receiver, 1.57in Square Form Factor for SWaP-constrained avionics and handheld applications.
Capabilities and Features
The NavAssure® 150 receiver is one of the world’s smallest, lightest, and lowest power SAASM receivers*. Designed from the ground-up to service SWaP-constrained applications, NavAssure® allows deployment of SAASM technology in platforms never thought possible. The NavAssure® 150 is perfect for MANPACK Tactical Radios, artillery applications, small UAVs and Blue Force Tracking applications. Mayflower’s micro SAASM receiver is redefining the military GPS receiver landscape. NavAssure® 150 is packaged in a 1.57” square board form factor.
The Mayflower NavAssure® 150 is offered through the United States Foreign Military Sales (FMS) program authorized by the Arms Export Control Act (AECA), as amended [22 U.S.C. 2751, et. seq.] Mayflower is authorized to sell this defense article and services to foreign countries and international organizations.
Technical Specifications
- Interface: 10-pin connector (Samtec SFM-110-02-S-S-A)
- Host Interface: COM1/COM2 (3.3 V LVTTL)
- Protocol: ICD-GPS-153 (Outputs: PVT, PR/DR, Channel / Satellite / SAASM Status)
- Key Fill Ports: DS-101 and DS-102
- PPS: 1 PPS In/1 PPS Out
- Operating Voltage: 3.3 V +/- 10%
- Temperature
- Operating: 0o C to +70o C
- Storage: -55o C to +125o C
- Built-In Test (BIT): 95% coverage
- Antenna Input: Passive (Hirose U.FL-R-SMT-1)
- Codes/Frequencies: L1 and L2 Simultaneous, C/A and P(Y)
High level Features**
SWaP Metrics
Performance Metrics
NavAssure® is a registered trademark of Mayflower Communications Company, Inc.
* The NavAssure® 150 has been granted Security Approval by the GPS Directorate.
** Suitable for SWaP constrained small UAS and handheld applications
